UG Sliding and Lift-Sliding doors
- a system featuring improved thermal performance, used to design sliding and lift-sliding structures
- the UG sliding structures are intended for residential buildings, mainly private and public buildings
- the system is adapted to the latest requirements relating to thermal performance, aesthetics and safety; available system options: UG low-threshold version, UG – 90° angular solution
- with its parameters, the UG system makes it possible to design structures with vary large dimensions of sliding leaves; maximum structure dimensions available in the system: leaf height – Hs = 3300 mm; leaf width – Bs = 3200 mm
- the UG system makes it possible to design large – but still stable – sliding windows and doors; maximum leaf weight: 250 kg – sliding option; 400 kg – lift-sliding option
- structure design: 3, 5 and 7 chamber frame
- possible variants with two, three and four components based on the two-rail system
- profiles suitable for installation of various hand-locked hardware available on the market and automatic devices
- various types of infills can be used (double and triple glazed units)
- system is adapted to the latest requirements relating to thermal performance; the system is equipped with a 22 mm/28 mm wide separator improved with glass fibre, thermal inserts and under-glass inserts to improve cross-sectional thermal performance; available options: UG, UGi and UGi+
- used for designing large glazing, which provides natural lighting inside the building and facilitates interior design, with ensured stability, functionality and structure lightness;
- there is possibility of use Fly screen system (Fly screen - fly screen are a practical and an extremely functional protection against insects)
Other options offered with UG Sliding and Lift-Sliding doors
UG Mono Rail
UG-Corner Solution
UG-Corner Solution
- Monorail – option of the Ultraglide system, sliding or lift-sliding system
- at least one fixed component (glazing) in the structure is the characteristic feature of the system
- a special structure of the frame makes it possible to increase the clear opening relative to the fixed component;the system features improved thermal performance
- optional to use glazing from the outside, which makes it possible to use large-size, heavy infills
- possible structure variants:
2-component (sash + fix)
3-component (sash + fix + sash)
4-component (2 sashes + 2 fixes) - single-rail frame
- there is possibility of use Fly screen system (Fly screen - fly screens are a practical and an extremely functional protection against insects)
UG-Corner Solution
UG-Corner Solution
UG-Corner Solution

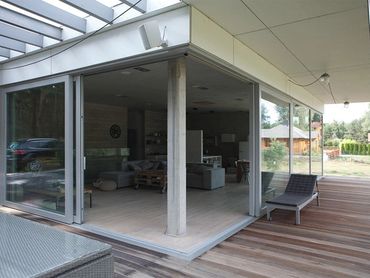

- the system is designed for large glazed corner
- characteristics of construction: two- and three-rail frame, possible structure variants: 4-, 6- and 12-components
- the system is perfect for commercial and private buildings where open space is required: terraces, porches, sunrooms, patios; the door is opened by moving the stud that joins the leaves; as a result, the entire room corner is open, and the space is not divided by the structural stud; for smaller glazing solutions, the sliding corner stud increases the clear opening, which significantly improves the comfort of going in/out
- there is possibility of use Fly screen system (Fly screen – fly screens are a practical and an extremely functional protection against insects)
UG-Low threshold
UG-Corner Solution
UG-Low threshold
- ULTRAGLIDE is characterised not only by its functionality, but also economical and aesthetic architectural solutions; a modern structure and lift-sliding hardware in low-threshold UG system provides convenient use, enhanced usefulness and an elegant design; the low-threshold model is a solution to improve building accessibility for disabled people; the low-threshold option prevents edge offset at the door-floor contact and enables threshold-floor flushing
- characteristic of construction:
possible structure variants:
2-, 4-component based on a two-rail frame
possible structure variants:
2-component (sash + fix)
4-elements (2 frames + 2 fix) - optional to use glazing from the outside, which makes it possible to use large-size, heavy infills
- there is possibility of use Fly screen system (Fly screen – fly screens are a practical and an extremely functional protection against insects)
