Respect for the origin

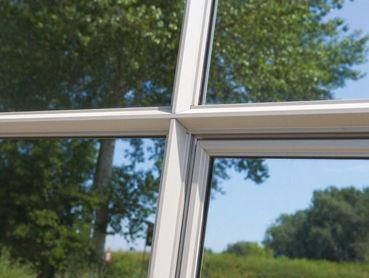

ML-Steel Look


This window is a thermally insulated system that combines elegant design, stability and featuring a smooth and slim profile line.  The specific shape of the profiles (resembling steel profiles) gives the structure a modern industrial character and steel look.


As such, ML-Steel Look is the perfect solution for both new-built constructions and the replacement of steel-framed windows and doors, respecting the original design but offering a thermally improved solution.


The minimalistic design is reinforced an invisible drainage system, avoiding the use of drainage caps at the outside of the windows. This system can also comply with burglar resistance class 2, offering a safe and secure solution.


A wide rage of colors is available from RAL-palette, texture colors and wood look effect colors.

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - ML Steel Look
  • MATERIAL - aluminum/polyamid
  • DEPTH OF FRAM - 105mm
  • DEPTH OF LEAF - 97mm
  • GLAZING RANGE - up to 59mm
  • TYPE OF WINDOWS - fixed windows, opening windows: single- or double-sash windows with tilting, opened inwards

PERFORMANCE

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - ML Steel Look
  • THERMAL INSULATION UF* - Uf from 1,8 W/m2K
  • AIR PERMEABILITY - Class 4; EN 12207
  • WINDLOAD RESISTANCE - Class C5; EN 12210
  • WATERTIGHTNESS - Class E1650; EN 12208
  • Thermal insulation is dependent on a combination of profiles and thickness of the filling

Inspiration

Light, Elegance and Comfort

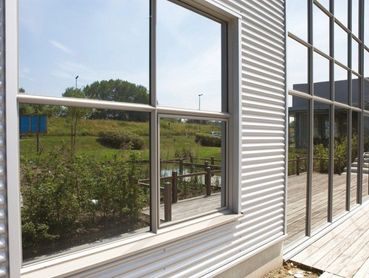

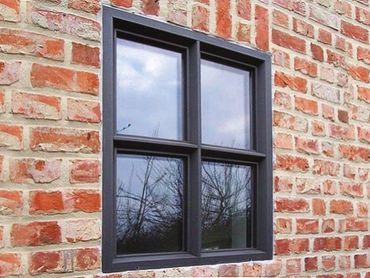

The ML System is available in 3 different minimalistic design variants, ML-Steel, ML-Design and ML-Modern to perfectly match the architectural aspect of the building. The windows and doors can be provided with double and triple glazing without losing the ultra-slim lock.

Choose your design

ML- Steel

ML - Design

ML - Design

ML - Design

ML - Design

ML - Design

ML- Modern

ML - Design

ML- Modern
