Universal Solution

IM-65


IM-65 is a universal window and door system, with good performances regarding stability, thermal insulation and security. The system is available in a variety of aesthetic styles: Functional, Pivot, Tilt-Slide and Hidden Vent - this way the windows can match your building style perfectly.


The system offers a range of solutions for inward and outward opening windows, doors and is compatible with the Ventalis ventilation units. In addition, IM-65 windows and doors can comply with burglar resistance classes 2 and 3, offering an ultimate level of security.

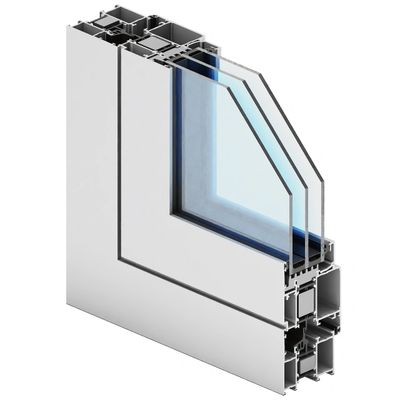

High thermal insulation power was achieved by applying special thermal inserts slid between thermal separators and around the glass pane.


A large number of shapes in the system guarantees obtaining desired appearance and structural strength.


The IM-65 system is designed for use in residential and public buildings, and also allows designing modern window solutions in multiple variants.


There is a possibility of use Fly screen and Insect Systems.


A  wide range of colors is available from RAL-palette, texture colors, wood look effect colors and two tone colors.

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - iM 65
  • MATERIAL - aluminum/polyamid
  • DEPTH OF FRAME - 65mm
  • DEPTH OF LEAF - 74mm
  • GLAZING RANGE - 4-51mm
  • ACOUSTIC - 43 (-2,-4) dB
  • TYPE OF WINDOWS -  single and double windows, outside opening, inside opening

PERFORMANCE

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - iM 65
  • THERMAL INSULATION UF* - Uf from 1,28  W/m2K
  • AIR PERMEABILITY - Class 4; EN 12207
  • WINDLOAD RESISTANCE -  Class C4; EN 12210
  • WATERTIGHTNESS -  Class E1350; EN 12208
  • Thermal insulation is dependent on a combination of profiles and thickness of the filling

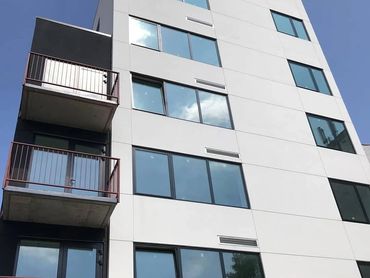

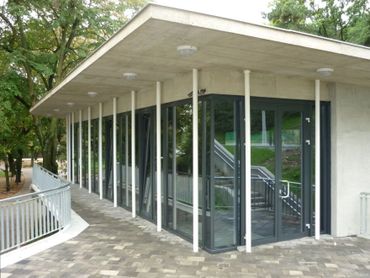

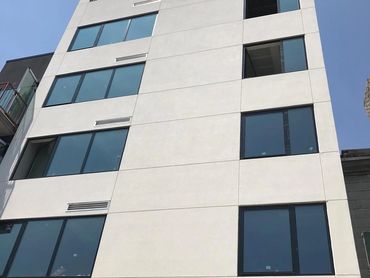

Inspiration
