Optimised safety and comfort

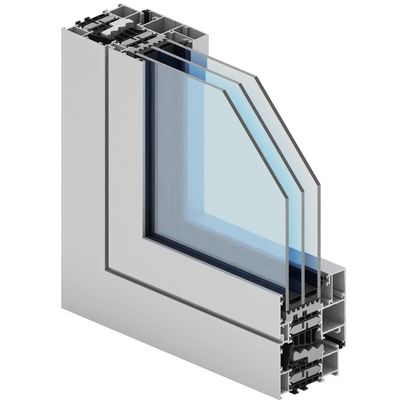

GN-75


GN-75 is a modern aluminum high insulating window and door system that meets elevated requirements regarding thermal insulation, stability and security. The unique concept of the system makes it perfectly suitable for triple glazing. The system's performance regarding acoustics, water- and air tightness meets the most sever European standards. Moreover, GN-75 is available is different burglar resistance level (class 2 & 3) making it an extremely secure system.


To match the different building types, the system is available in a variety of aesthetic styles: Modern, Outward, and  Invisible Vent


​GN-75 is a system intended for designing windows and doors structures in public access buildings as well as single-family and multi-unit residential buildings


A wide range of sections/profiles available in the offer of the Genesis 75 system is used to design modern windows, doors and display units that ensure high functionality


The GN-75 system incorporates modern insulation materials that have just been launched onto the market; apart from a conventional central gasket, an additional thermal gasket has been developed as well; with this solution, it is possible to attain very excellent tightness of windows (air infiltration, water-tightness) as well as innovative appearance and aesthetics


The system will allow the customer to select various finish options for profiles so that the window structure can be customized (renovation profiles)


GN-75 system also allows to make a corner-to-corner combination of 90 degrees to achieve an impressive glass surface.


GN-75 system sets a new standard of window thermal performance, with the highest ergonomics of use and modern profile aesthetics maintained

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - GN 75 window
  • MATERIAL -  aluminum/ thermal insulation
  • DEPTH OF FRAME - 75mm
  • DEPTH OF LEAF - 84mm
  • GLAZING RANGE -  fix 1 - 56 mm / 9-65 mm
  • ACOUSTIC -  45 (-1,-3) dB
  • TYPE OF WINDOWS -   fix, turn-only, tilt and turn

PERFORMANCE

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - GN 75 window
  • THERMAL INSULATION UF* - Uf from 0,76 W/m2K
  • AIR PERMEABILITY - Class 4; PN-EN 12207
  • WINDLOAD RESISTANCE - E2400 (2400 Pa); PN-EN 12210
  • WATERTIGHTNESS -   E1800 (1800Pa)/E1950*(E1950 Pa); PN-EN 12208
  • Thermal insulation is dependent on a combination of profiles and thickness of the filling
  • A value of 1950 Pa was obtained during testing

Inspiration


The GN-75 is available in different design variants,  GN-75 Modern, GN-75 Outward, GN-75 Invisible and GN-75 Door with low threshold to perfectly match the architectural aspect of the building. The windows and doors can be provided with double and triple glazing.

Choose your design

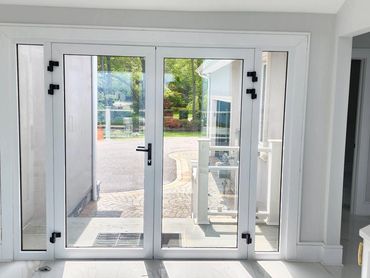

GN 75 - Modern

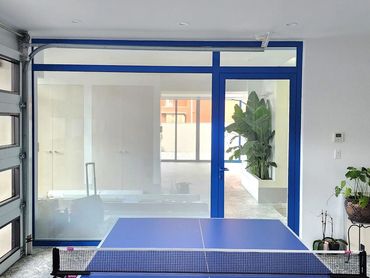

GN 75 - Invisible

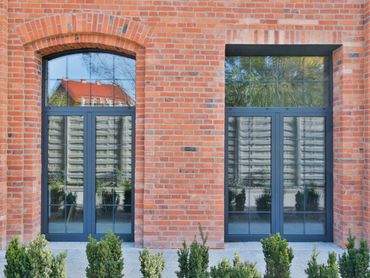

GN 75 - Outward

GN 75 - Outward

GN 75 - Invisible

GN 75 - Outward

GN 75 - Invisible

GN 75 - Invisible

GN 75 - Invisible

GN 75 - Door

GN 75 - Invisible

GN 75 - Invisible

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - GN 75 door
  • MATERIAL -  aluminum/ thermal insulation
  • DEPTH OF FRAME - 75mm
  • DEPTH OF LEAF - 75mm
  • GLAZING RANGE - 1 - 59 mm
  • ACOUSTIC - 44 (-1,-4) dB
  • TYPE OF DOORS - single and double doors, outside and inside opening, panic doors

PERFORMANCE

TECHNICAL SPECIFICATION

TECHNICAL SPECIFICATION

  • SYSTEM - GN 75 door
  • THERMAL INSULATION UF* - Uf from 1,195 W/m2K
  • AIR PERMEABILITY - Class 4; PN-EN 12207
  • WINDLOAD RESISTANCE - C5 (2000Pa); PN-EN 12210
  • WATERTIGHTNESS - E1200 (1200Pa); PN-EN 12208
  • Thermal insulation is dependent on a combination of profiles and thickness of the filling
  • A value of 1950 Pa was obtained during testing
